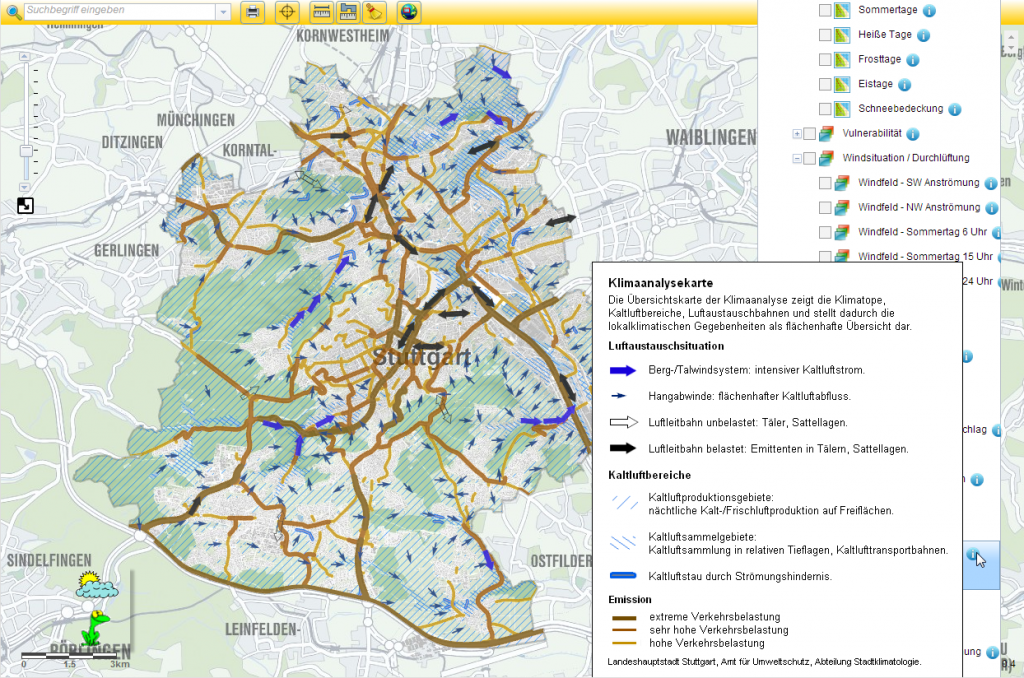

atlasFX als Umweltdaten-Visualisierungstool

The city of Stuttgart shows how transparent management works: Environmental data and environmental analyzes in the internet with atlasFX.

URL:

• http://gis6.stuttgart.de/atlasfx/js/index_desktop.html?mapId=90#scale=100000&centerX=3517062&centerY=5404909&layers=547891712,136348168,657440,537034754,133122,-2113273344,404752416,0

Special:

• Outstanding and complex cartography published as online map

Technology:

• atlasFX 2.0.4, JavaScript-Client

Stuttgart 21 / Links in Feature Info / graphic embedding

Example for embedding graphics and links in feature info at Stuttgart 21

URL:

• http://biss21.de/atlasfx/index.html?mapId=82#?layers=1395735&centerX=3513914.311&centerY=5405040.444&scale=2500

special:

• The tool "data in the current map extent" is well used because the layer is actually invisible, only by on-mouse-over you get the position or the scope of the plan.

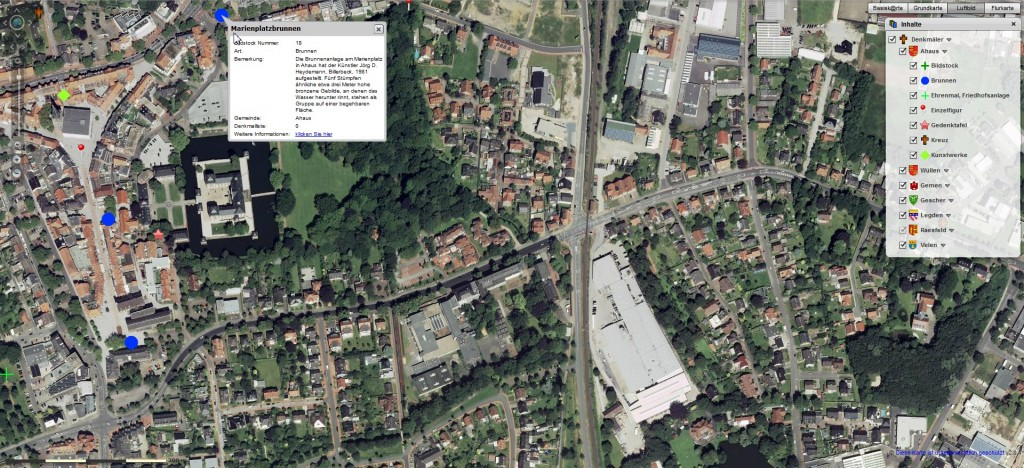

Kreis Borken - POI Schloss Ahaus

Beautiful example from the "Wasserschloss" in Ahaus in the district of Borken.

URL:

• http://gis.kreis-borken.de/atlasfx_bildungskreis/index.jsp?mapId=329#layers=1431655792,1431655761,1431655765,1565873493,341&basemap=2&centerX=363782.782&centerY=5771268.667&scale=2500&feature=1020,157,363576.72,5771488.40

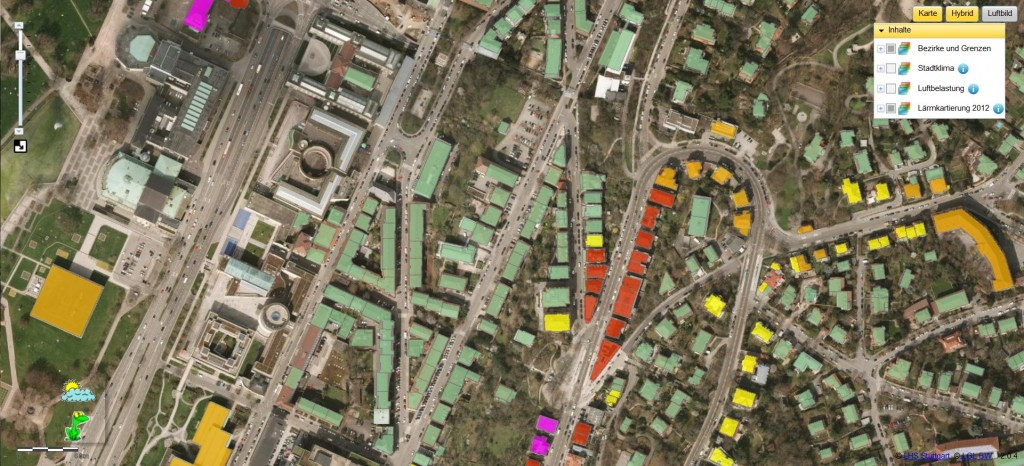

Thematic maps: Traffic noise on house facades (Stuttgart)

Example for embedding polygon layer in atlasFX: Mapping of buildings regarding traffic noise in near of the "Stuttgarter Schloss".

URL:

• http://gis6.stuttgart.de/atlasfx/js/index_desktop.html?mapId=87#scale=2500&centerX=3514003&centerY=5404661&layers=134217732,2080,-2113396736,2097184,-2113396736,4327456&basemap=2

Besonderheiten:

• Auf das (i) hinter der der Layerbeschreibung klicken => zeigt die Legende.

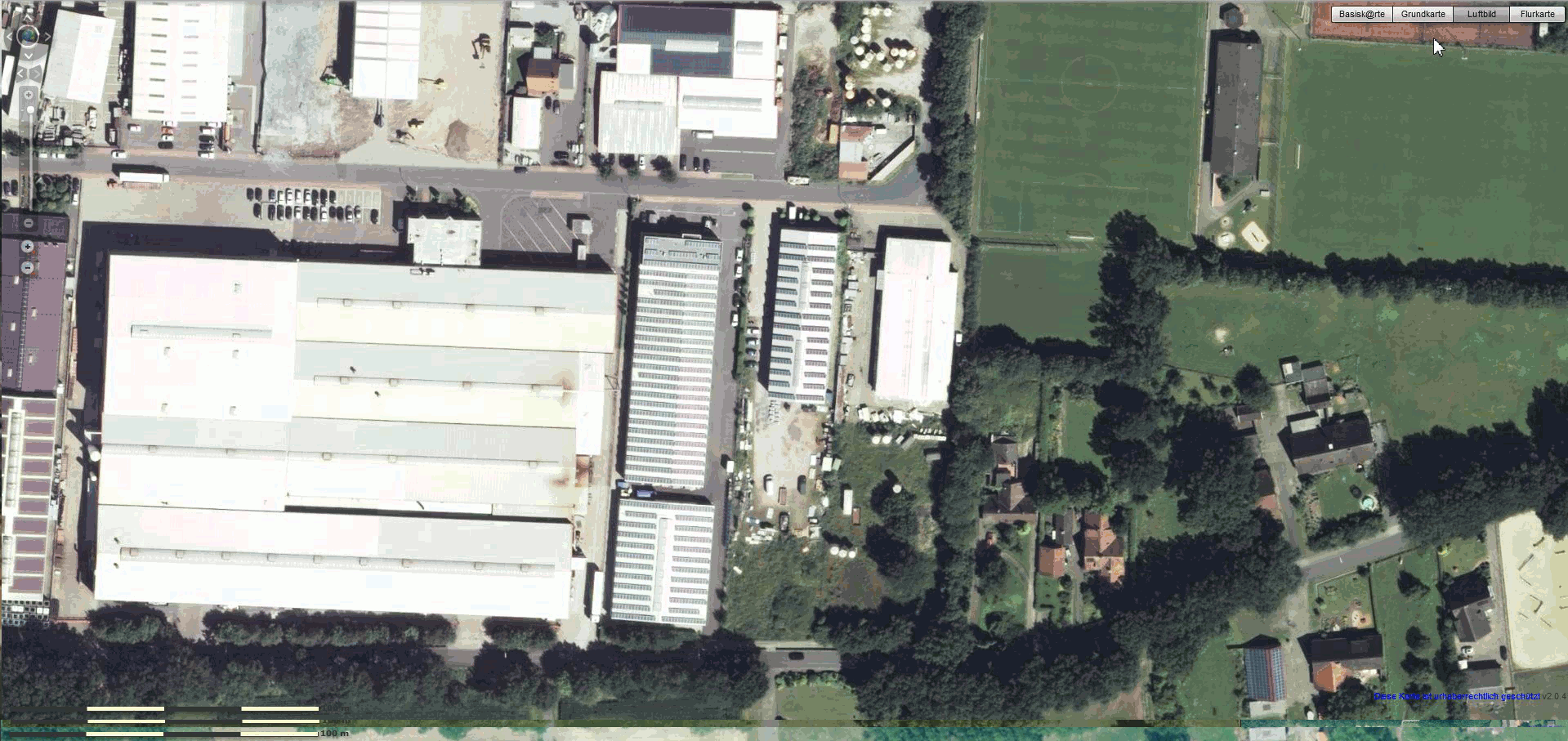

Kreis Borken Base Map Slider => Change Detection

A concrete example of the possibilities of the basemap sliders.

URL:

• http://gis.kreis-borken.de/atlasfx_bildungskreis/index.jsp?mapId=324#&basemap=2&centerX=354966.806&centerY=5761951.054&scale=1000

special:

• Changes in time visible by using the basemap slider.

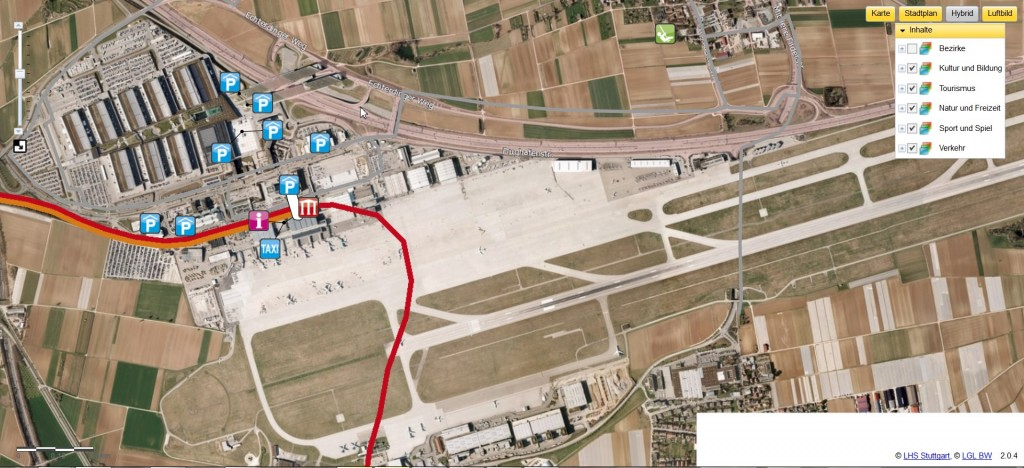

Stadt Stuttgart - Decluttering at the example airport

Beautiful example of decluttering at the airport in Stuttgart.

URL:

• http://gis6.stuttgart.de/atlasfx/js/index_desktop.html?mapId=147#scale=10000&centerX=3515268&centerY=5394752&layers=1431655744,1431655765,1431655765,1565873493,5&basemap=2

special:

• Nice example for decluttering
